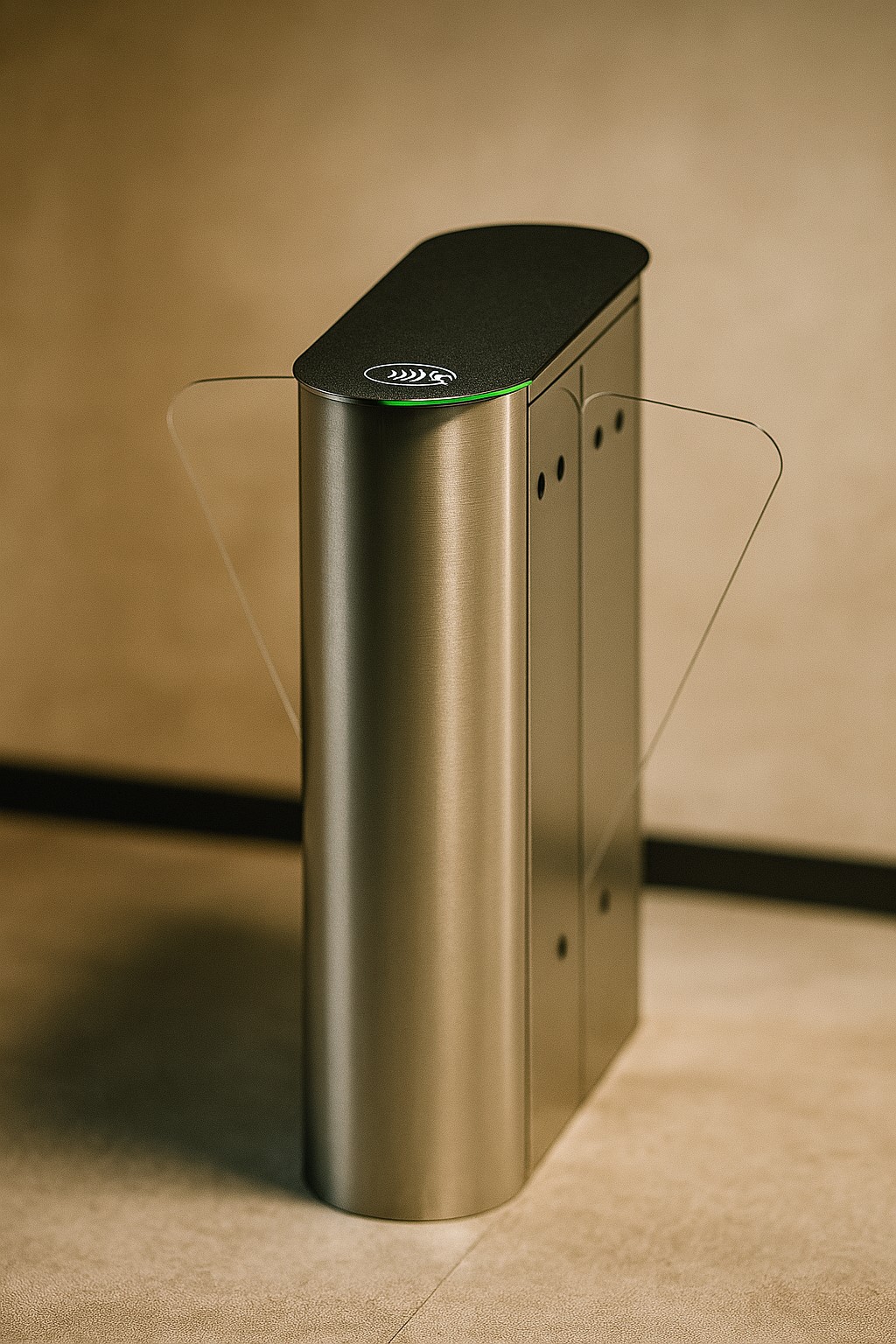

Oskar Speed Gate Turnstile HCT 350 D

It is our double-sided, double-winged and independent double-mechanism motorized optical fast transition turnstile model, it has been specially designed for stylish places where visuality is at the forefront. ( 350 D ) is used to create more than one corridor, more than one ( 350 D ) double can be placed between two ( 350 S ) models, thus providing unlimited corridor creation. ( 350 D ) is the most elegant optical turnstile model you can find in the market, it can work for many years in indoor and outdoor environments without any problems, it has a stylish and modern appearance thanks to its ASI 304 quality stainless steel structure, it can be installed easily and quickly thanks to the mounting kit camouflaged in the case, (350 D) D ) with its modern lines and aesthetic structure, it almost decorates your space, at the same time it offers a very elegant solution for welcoming and organizing, controlling and recording your visitors.

Stock Code: HCT 350 D
Category: Turnstiles
Oskar Speed Gate Turnstile HCT 350 D.

STANDARD EQUIPMENT AND FEATURES

ENERGY: 220 VAC 50/60 Hz Optional 110 VAC.
POWER CONSUMPTION: Maximum 25 Watt, Minimum 10 Watt.
POWER SUPPLY: 220 Vac 50/60Hz swich mode adapter.
POWER RATIOS: Maximum 50 Watts – Minimum 3 Watts.
INTERNAL VOLTAGE: 24V DC maximum.
WORKING TEMPERATURE: -20° to +55° C (up to -40° C with LTT HT heater option)
WORKING DIRECTION: It is suitable for entry-exit from both directions.
DRIVING: When the authorization signal comes, the DC Motor is activated, the wings come to the open position in an extremely silent way. It moves with a little force that will not cause any harm to the person, and at the same time, thanks to its eccentric movement system, the wings can never be opened with a manual intervention when they are in a completely closed position.
MECHANISM: DC Motor, microprocessor-controlled, extremely quiet and eccentric working mechanism with minimum friction ratio is placed inside the case, thanks to the inductive sensors on the mechanism, information about the wing position can be obtained easily, and the new design mechanism, which works with a tremendous silence, can operate without any problems for many years.
EMERGENCY: There is an emergency contact input on the turnstile main board, this input can be connected to emergency systems such as fire and earthquake. In this way, when the emergency contact comes, the indicators turn green and the turnstile switches to free passage in both directions.
INDICATORS: LED light indicators placed under the semi-transparent smoked glass, which are placed zero on the surface on the top table, provide information about the OF-ON status of the turnstile. When the authorization signal is received, the green arrow means that the transition is free, while the waiting times when the authorization signal is not received, the red x always indicates that the transition is not free.
CASE: Asi 304 quality stainless steel main pillars, intermediate pillars and top cover, as well as side covers are produced as standard from 5 mm black plexiglass material, they can be changed depending on the customer's request.

OPTIONAL EQUIPMENT AND FEATURES

ENERGY FAILURE: An optional external power supply circuit can be connected, so turnstile wings open automatically when power is cut off.
REMOTE CONTROLLER: An external remote control can be easily controlled, and the receiver unit can be easily connected to the main board inside the turnstile.
POLYCARBONATE WING: With its bulletproof 10 mm transparent polycarbonate wing, it is at least 5 times more resistant to breakage.
TEMPERED GLASS WING: Depending on customer request, 10mm tempered glass wings can be produced.
3 COLOR LED STRIP LIGHT: The transparent turnstile wing is softly illuminated with phosphorescent or fixed light, depending on the user's request, with 3-color LED strips, red, green and blue, placed inside the body. makes it noticeable.
LASER LOGO EMBROIDERED WING: Laser engraved logo or text can be embroidered on the surface of the plexi wing, depending on the user's request, so that the transparent plexi wing can be easily recognized. Moreover, when 3 color strip LEDs are applied in addition to embroidering the logo or text, the embroideries and the wing look much more distinctive and elegant. wins.
TOP TABLE: It can be produced as special ellipse cut Granite & marble with more than one color and pattern option specific to the demand.
PROTECTIVE COVER: A protective cover can also be specially produced on the top table, which is produced to prevent scratches and possible liquid contact with the exterior and interior environments.
READER GLASS: Ellipse or optional laser cut plexiglass reader glass in different shapes and sizes can be placed on the top table, and this glass surface can be produced as zero or optionally protruding.
CONTROL: Pass trigger can work with 12 VDC, 24 VDC, RS 232 -RS 442-485 and can be directly controlled by PC, 256 turnstiles can be controlled with a single PC. If desired, it can be used with all access control units and other peripherals. There is a data output in the direction passed, this output can be a digital output or it can be sent directly to the PC in PC control.
COLORING: With a wide range of colors, all our models can be colored with electrostatic oven paint upon customer request.
EXTRAS: Oskar turnstile can produce customized solutions for all turnstile types.
