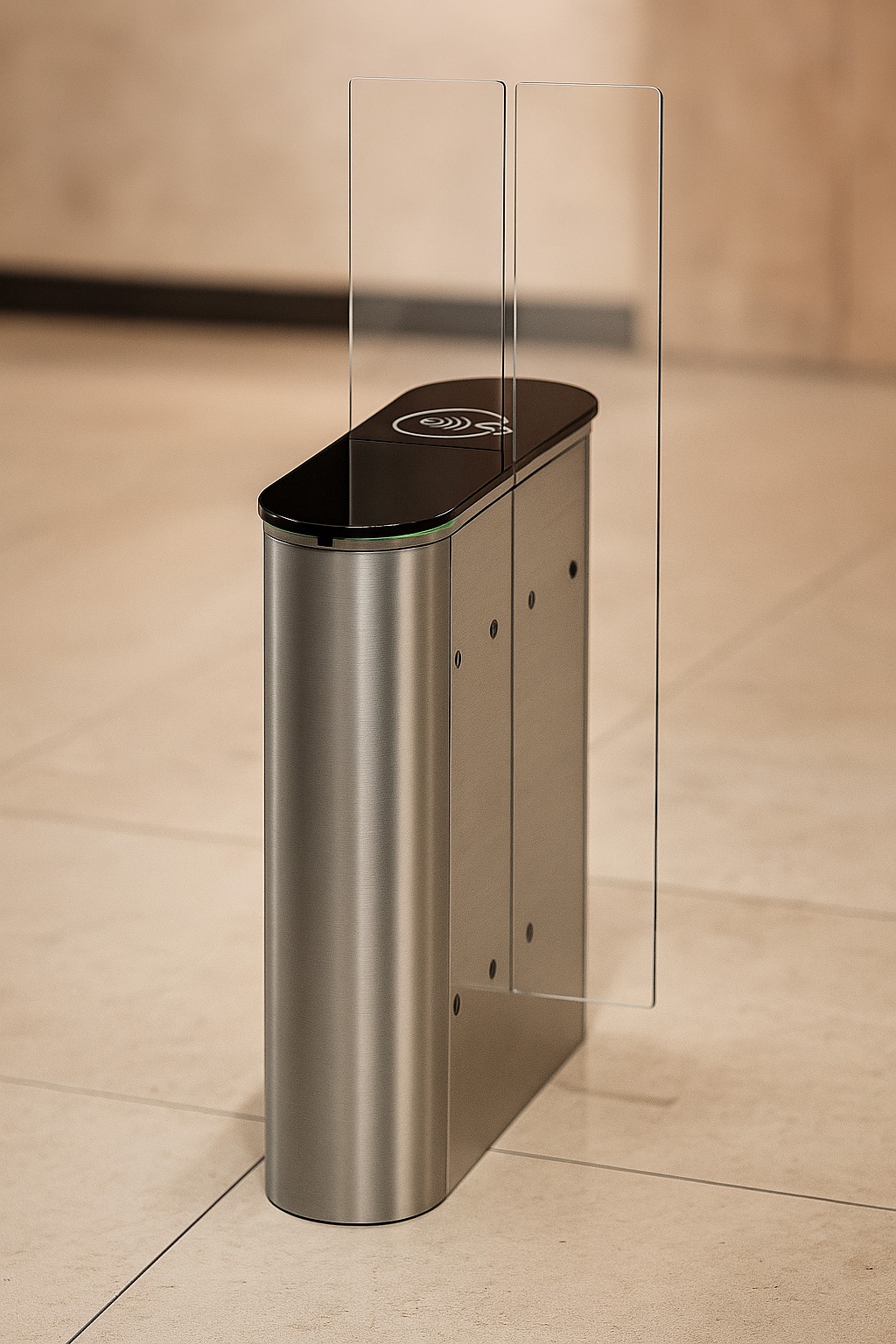

Oskar Speed Gate Turnstile HCT 1600 S

It is our double-sided, single-wing motorized optical fast-transition turnstile model, it has been specially designed for stylish places where visuality is at the forefront. A passage corridor can be created with 2 pieces (1600 S ), at the same time, more than one (1600 D ) double can be placed between two (1600 S ) doubles, thus providing unlimited corridor creation. (1600 S ) is the most stylish optical turnstile model you can find in the market, it can work for many years in indoor and outdoor environments without any problems, it has a stylish and modern appearance thanks to its ASI 304 quality stainless steel structure, it can be installed easily and quickly thanks to the mounting kit camouflaged in the case, (1600 S ) S ) with its modern lines and aesthetic structure, it almost decorates your space, at the same time it offers a very stylish solution for welcoming and organizing, controlling and recording your visitors.

Call Now

STANDARD EQUIPMENT AND FEATURES

ENERGY: 220 VAC 50/60 Hz Optional 110 VAC.
POWER CONSUMPTION: Maximum 25 Watts Minimum 10 Watts.
POWER SUPPLY: 220 Vac 50/60Hz swich mode adapter.
POWER RATIOS: Maximum 50 Watts – Minimum 3 Watts.
INTERNAL VOLTAGE: 24V DC maximum.
WORKING TEMPERATURE: -20° to +55° C (up to -40° C with LTT HT heater option)
WORKING DIRECTION: It is suitable for entry-exit from both directions.
DRIVING: When the authorization signal comes, the DC Motor is activated, the wings come to the open position in an extremely silent way, the mechanism that detects the passage of the person with the photocells mounted on the body, the wings will never close if there is any living or inanimate object between the wing before the transition is completed, even if it is provided to close by deceiving the system. It moves with a little force that will not cause any harm to the person, and at the same time, thanks to its eccentric movement system, the wings can never be opened with a manual intervention when they are in a completely closed position.
MECHANISM: DC Motor, microprocessor-controlled, extremely quiet and eccentric working mechanism with minimum friction ratio is placed inside the case. Thanks to the inductive sensors on the mechanism, information about the wing position can be obtained easily.
EMERGENCY: There is an emergency contact input on the turnstile main board, this input can be connected to emergency systems such as fire and earthquake. In this way, when the emergency contact comes, the indicators turn green and the turnstile switches to free passage in both directions.
INDICATORS: LED light indicators placed under the semi-transparent smoked glass, placed on the top plate zero to the surface, provide information about the OF-ON status of the turnstile. When the authorization signal is received, the green arrow means that the transition is free, while the waiting times when the authorization signal is not received, the red x always indicates that the transition is not free.
CASE: ASI 304 quality stainless steel main pillars, intermediate pillars and top cover, as well as side covers are produced as standard from 5 mm black plexiglass material, they can be changed depending on the customer's request.

OPTIONAL EQUIPMENT AND FEATURES

POWER FAILURE: An optional external power supply circuit can be connected, so turnstile wings open automatically when power is cut off.
REMOTE CONTROLLER: An external remote controller can be easily controlled, and the receiver unit can be easily connected to the main board inside the turnstile.
POLYCARBONATE WING: Thanks to the bulletproof 10 mm transparent polycarbonate wing, it is at least 5 times more resistant to breakage.
TEMPERED GLASS WING: 10mm tempered glass wings can be produced upon customer request.
3 COLOR LED STRIP LIGHT: The transparent turnstile wing is softly illuminated with a phosphorescent or fixed light, depending on the user's request, with 3-color LED strips, red, green, blue, placed inside the body. makes it noticeable.
LASER LOGO EMBROIDERED WING: A laser engraved logo or text can be embroidered on the surface of the plexi wing, depending on the user's request, so that the transparent plexi wing can be easily recognized, in addition to embroidering the logo or text, when 3 color LED strips are applied, the embroideries and the wing look much more distinctive and stylish. wins.
TOP TABLE: It can be produced as special ellipse cut Granite & marble with multiple color and pattern options specific to demand.
PROTECTIVE COVER: A protective cover can also be specially produced on the upper table, which is produced to prevent scratches and possible liquid contact with external and internal environments.
READER GLASS: Ellipse or optional laser cut plexiglass reader glass in different shapes and sizes can be placed on the top table, and this glass can be produced as zero or optionally protruding on the surface.
CONTROL: Access trigger can work with 12 VDC, 24 VDC, RS 232 -RS 442-485 with direct PC control. 256 turnstiles can be controlled with a single PC. If desired, it can be used with all access control units and other peripherals. There is a data output in the direction passed, this output can be a digital output or it can be sent directly to the PC in PC control.
COLORING: With a wide range of colors, all of our models can be colored with electrostatic oven paint, depending on the customer's request.
EXTRAS: Oskar turnstile is able to produce customized solutions for all kinds of turnstiles.
