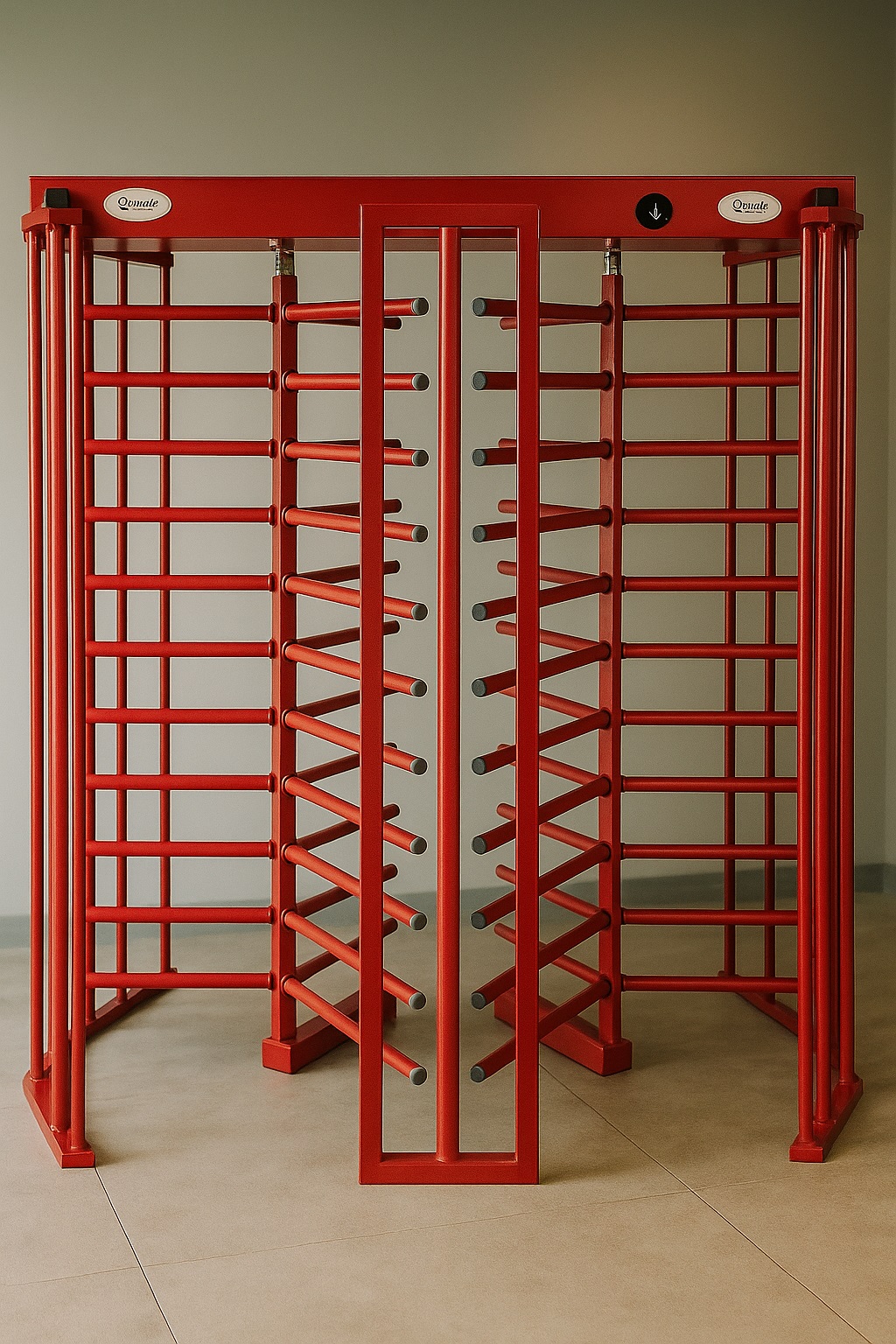

Oskar Height Turnstile OBT 3220

It is a 3-armed double full-height turnstile, it is designed to meet crowded groups in places such as entertainment centers, amusement parks, factories, stadiums, prisons, military, in short, various social areas where security should be at the top, etc. Input and output can be made from the rotor, additionally, separate information can be obtained from both directions thanks to the dual motherboard with microprocessor independent of each other, ( 3220 ) It can work for many years in indoor and outdoor environments without any problems, exhibits a very stylish and modern appearance thanks to the laser cut junction lines, thanks to the mounting kit It is an extremely optional and durable turnstile model that can be installed easily and quickly, ( 3220 ) is resistant to heavy passage circulation and impacts, and its security can be increased. Also, with its modern lines and aesthetic structure, it is very economical and stylish for you to welcome and organize your visitors, to control and record them. a solution opportunity presents.

Stock Code: OBT 3220
Category: Turnstiles
Oskar Height Turnstile OBT 3220.

STANDARD EQUIPMENT AND FEATURES

ENERGY: 220 VAC 50/60 Hz Optional 110 VAC
POWER CONSUMPTION: Maximum 25 Watts Minimum 10 Watts
INDICATOR: The LED indicator glass is designed to be zero to the body surface, it refers to the system's access control. The LED indicator is offered as standard in all Oskar LED indicator turnstiles, and it can also be produced in different forms optionally.
CONTROL: There is a dry contact data output in the passed direction, Dry contact for transition triggering, 12 VDC, 24 VDC or can be easily connected to various access control units and other peripherals, also the direction selection can be easily adjusted by end users via dip switches on the card , Turnstile allows free passage in both directions in case of power failure, this is a legal obligation, no other system is optionally offered without the written and official signature of the customer, there is also an extra contact input for emergencies (eg fire, earthquake etc.). All solenoid and led indicator outputs are long-lasting semiconductors, there is also a buzzer on the control card that indicates that a pass is detected. If desired, this buzzer can be disabled by means of the dip switch on the card.
BODY: All Oskar height turnstile models can be produced in 3 different versions according to the user's request, ( V.S -1 All DKP + Electrostatic oven painted ) ( V.S - 2 All ASI 304 Quality stainless steel ) ( V.S - 3 (Only Rotor stainless, other parts electrostatic oven) painted.
EXTERNAL MECHANICAL: Turnstile rotor and chassis are welded by our experienced and certified expert staff with gas or argon welding in accordance with the material type, along with the rotor ground bearing is provided with a conical load bearing, this bearing is hidden inside the rotor and is away from liquid and moisture for many years. can run smoothly.
EMERGENCY: There is an emergency contact input on the turnstile main board, this input can be connected to emergency systems such as fire and earthquake. Thus, when the emergency contact comes, the turnstile switches to free passage in both directions.
GLASSES: Turnstile rotor glasses are produced specially for 10 mm laser cut tempered turnstile, side cage glasses are offered as 8 mm grinding glass as standard.
MECHANISM: It can work in two directions thanks to its electromechanical motor system, it allows one person to pass with a 120 degree movement, it does not allow a return after 30 degrees, it has a 120 degree locking system thanks to the solenoid coils specially manufactured for the turnstile, it does the 120 degree damping with a hydraulic absorber, therefore, it offers a smooth and silent transition, it works with 60% less friction as a result of moving many moving parts on the new design mechanism to the bearing, specially produced solenoid coils, high quality absorber shock absorber used on it, hemisphere made of stainless chrome steel material. Thanks to the head and arms, it has a 70% longer life in general.

OPTIONAL EQUIPMENT AND FEATURES

REMOTE CONTROLLER: An external remote controller can be easily controlled, while the receiver unit can be easily connected to the main board inside the turnstile.
PLATFORM WITH WEIGHT SENSOR FOR HIGH SECURITY: Thanks to the weight sensor platform specially produced for all Oskar height type turnstiles, the turnstile never allows the passage of personnel registered in the system unless the kg ratio does not overlap, so that situations such as irregular heavy material passing from inside to outside or from outside to inside or two people passing at the same time. This system can be adapted to all standard height turnstiles, thus increasing the security level and keeping the security of the place at the highest level. It can be installed easily and quickly thanks to the mounting kit. First of all, this platform can be installed on the turnstile. It is mounted on the floor, or the platform, depending on the user's request, can be buried zero to the floor surface, then the height turnstile is mounted on this platform.
CONTROL: Access trigger can be operated with 12 VDC, 24 VDC, RS 232 -RS 442-485 directly PC controlled, 256 turnstiles can be controlled with a single PC. If desired, it can be used with all access control units and other peripherals. There is a data output in the direction passed, this output can be a digital output or it can be sent directly to the PC in PC control.
COIN UNIT: Thanks to the Decorative coin unit we produce for all Oskar size type or tripod, V.I.P turnstile models, this external unit can be easily mounted on the floor next to the turnstile, even if there is no solid coin unit on the body, it can be easily connected to the electronic card in the turnstile, the unit coin reservoir is approximately 7.000. can receive coins, at the same time, various ACCESS fingerprint reader or card device can be connected to the inclined area at the top of the unit, so that it can be used as a decorative reader column at the same time. It can be produced as (ASI 304 quality stainless steel).
COIN: Turnstile coin is produced in standard size (Diameter 25 mm, thickness 2 mm), it is divided into two as material type ( Galvanized coating DKP ) and ( ASI 304 quality stainless) this selection is made by the user, also 3 letters or 3 digits number on the coin It can be produced in the form of customer demand, and external molds can be produced according to special demands such as other logo printings or company names.
