Oskar Butterfly Turnstile OSG 131 CS
Oskar Butterfly Turnstile OSG 131 CS

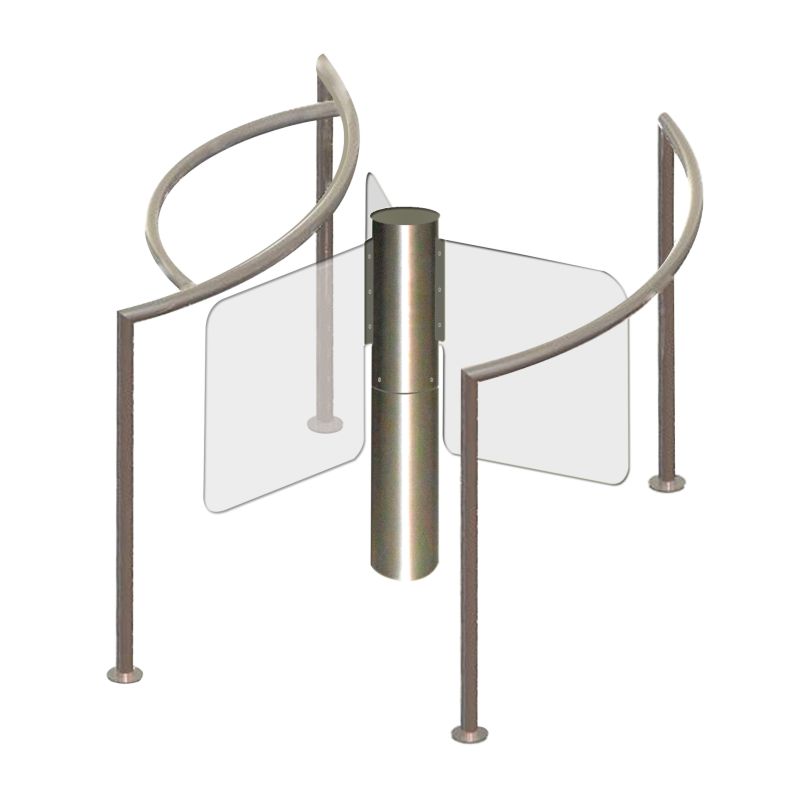

It is a half-height turnstile model with 3 wings, diameter 168 mm, cylindrical column body, motor that can operate in two directions. It has been specially designed for stylish places such as Plaza. (131 CS) is the most stylish glass half-height turnstile you can find in the market, but it can operate indoors and outdoors for many years without any problems. It has a stylish and modern appearance thanks to its ASI 304 quality stainless steel structure, it can be installed easily and quickly thanks to the mounting kit camouflaged in the foot, ( 131 CS ) decorates your space with its modern lines and aesthetic structure, and also offers a very elegant solution for welcoming and organizing, controlling and recording your visitors.
STANDARD EQUIPMENT AND FEATURES
ENERGY: 220 VAC 50/60 Hz Optional 110 VAC
POWER CONSUMPTION: Maximum 25 Watt, Minimum 10 Watt
INDICATOR: Two different transfer sticker labels are offered as standard Stop, Pass, sign on transparent plexiglass.
DRIVING: After the authorization signal is received, the mechanism switches to the open position in normal passages except for the power cut, the motor is activated as soon as the person touches the turnstile arm, the person makes the transition by means of the motor without requiring any force, and the person smoothly cycles 120 degrees after the transition. it is damped again by the engine.
WING DIMENSIONS: Thickness 10 mm transparent plexi wing length 325×820 mm is offered as standard, it can be changed according to demand.
CONTROL: There is a dry contact data output in the passed direction, It can be easily connected to a dry contact, 12 VDC, 24 VDC or Various access control unit and other peripheral units for transition triggering. In addition, the direction selection can be easily adjusted by the end users by means of the dip switches on the card, the turnstile allows free passage in both directions in case of power failure, this is a legal obligation, a contrary system is not offered as an option without the written and official signature of the customer, also for emergencies. (eg fire, earthquake etc.) there is an extra contact input. All solenoid and led indicator outputs are long-lasting semiconductors, there is also a buzzer on the control card that indicates that a pass is detected. If desired, this buzzer can be disabled by means of the dip switch on the card.
EMERGENCY: There is an emergency contact input on the turnstile main board, this input can be connected to emergency systems such as fire and earthquake. Thus, when the emergency contact comes, the turnstile switches to free passage in both directions.
BODY: Turnstile body and separators are all manufactured from AISI 304 quality stainless steel as standard.
MECHANISM: The unique design can work in two directions, thanks to the electromechanical motor system, it allows the passage of people with a 120-degree movement. Thanks to the solenoid coils specially manufactured for the turnstile, it creates a locking system at 120 degrees, makes the 120 degree damping softly with the motor and optical switches, so it offers a smooth and silent transition, Thanks to the specially produced solenoid coils and water-proof hidden ball bearings In general, it has a 50% longer lifespan.
OPTIONAL EQUIPMENT AND FEATURES
REMOTE CONTROLLER: An external remote control can be easily controlled, and the receiver unit can be easily connected to the main board inside the turnstile.
POLYCARBONATE WING: With its bulletproof 10 mm transparent polycarbonate wing, it is at least 5 times more resistant to breakage.
TEMPERED GLASS WING: Depending on customer request, 10mm tempered glass wings can be produced.
LASER LOGO EMBROIDERED WING: Laser engraved logo or text can be embroidered on the surface of the plexi wing, depending on the user's request, so that the transparent plexi wing can be easily recognized. Moreover, when 3 color strip LEDs are applied in addition to logo or text processing, the embroideries and the wing will look much more distinctive and stylish. wins.
CONTROL: Pass trigger can work with 12 VDC, 24 VDC, RS 232 -RS 442-485 and can be directly controlled by PC, 256 turnstiles can be controlled with a single PC. If desired, it can be used with all access control units and other peripherals. There is a data output in the direction passed, this output can be a digital output or it can be sent directly to the PC in PC control.
COLORING: With a wide range of colors, all our models can be colored with electrostatic oven paint upon customer request.
EXTRAS: Oskar turnstile can produce customized solutions for all turnstile types.
