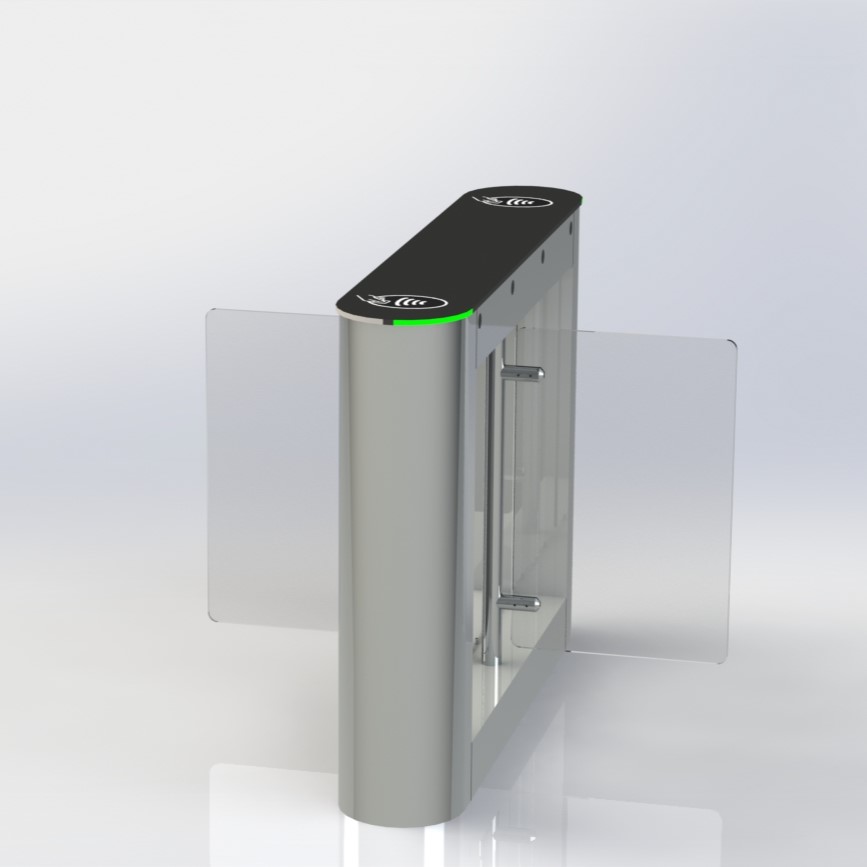

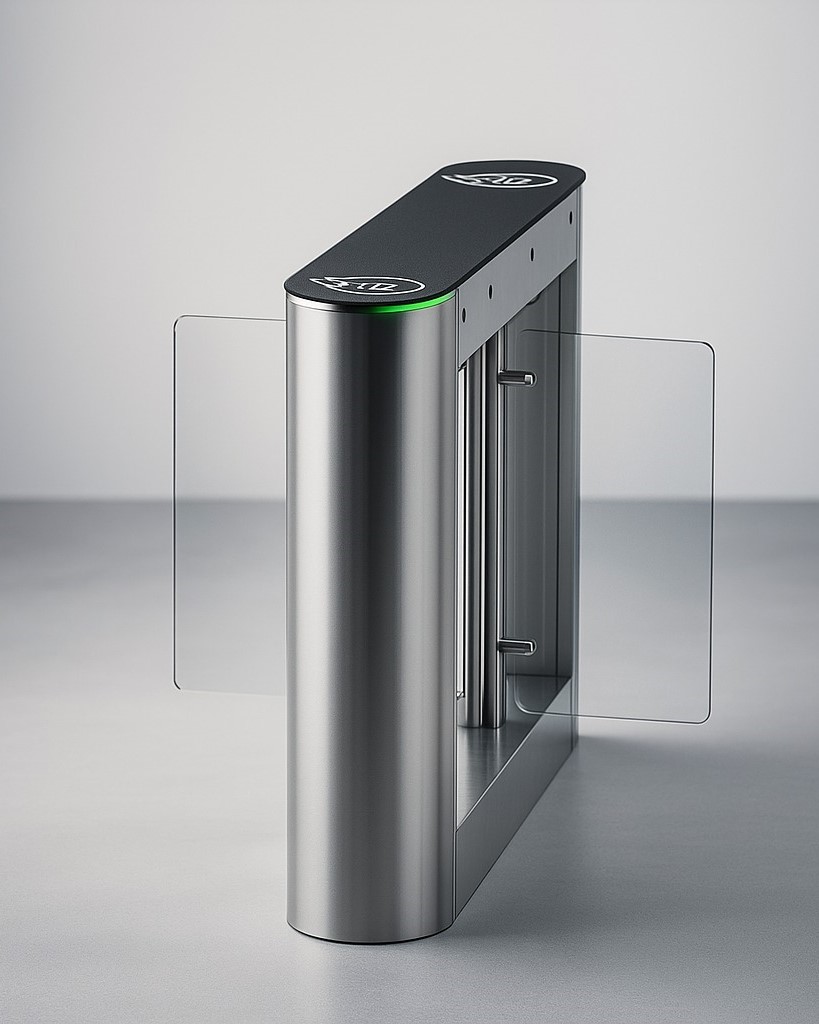

FCT 260 D

Our flap turnstile model FCT 260 D has been specially designed for spaces where visuality is at the forefront with its stylish and modern design. It provides single-wing passage control at high speed and safely with its motorized structure that can operate in both directions. Multiple FCT 260 D turnstiles can be placed side by side to create wide and unlimited passage corridors. Thanks to this feature, it offers effective solutions in areas with high human traffic. One of the most stylish flap turnstile models on the market, FCT 260 D is designed to operate without problems for many years both indoors and outdoors. It offers a modern look with its AISI 304 quality stainless steel body. It is easy and fast to install thanks to the mounting kit hidden inside the body. It adds elegance to the area it is located in with its aesthetic lines; it also offers an extremely stylish solution in the processes of welcoming, directing, controlling and recording your visitors.

Stock Code: FCT 260 D
Category: Turnstiles
flat turnstile. access system. security turnstile. FCT 260 D. double-arm turnstile. stainless steel turnstile.

STANDARD HARDWARE AND FEATURES

ENERGY: 220 VAC 50/60 Hz Optional 110 VAC.

POWER CONSUMPTION: Maximum 25 Watt Minimum 10 Watt.
POWER SUPPLY: 220 Vac 50/60Hz switch mode adapter.
POWER RATINGS: Maximum 50 Watt – Minimum 3 Watt.
INTERNAL VOLTAGE: 24V DC maximum.
WORKING TEMPERATURE: -20° to +55° C (up to -40 ° C with LTT HT heater option)
WORKING DIRECTION: Suitable for input-output from both directions.
DRIVING: When the authorization signal arrives, the DC Motor is activated, the wings come to the open position extremely silently, the mechanism that detects the passage of the person with the photocells mounted on the body never closes the wings if there is any living or non-living object between the wings before the passage is completed, even if it is closed by deceiving the system, it moves with a force so low that it will not harm the person, at the same time, thanks to the eccentric movement system, the wings can never be opened with a manual intervention while they are in the completely closed position.
MECHANISM: The DC Motor microprocessor controlled extremely silent and eccentric mechanism with minimum friction rate is placed inside the case, thanks to the inductive sensors on the mechanism, information can be easily obtained about the wing position, the new design mechanism that works with incredible silence can work without any problems for many years.
EMERGENCY: There is an emergency contact input on the turnstile main board, emergency systems such as fire and earthquake can be connected to this input. Thus, when the emergency contact comes, the indicators light up green and the turnstile goes into a free passage position in both directions.
INDICATORS: LED indicators placed under semi-transparent smoked glass placed flush with the surface on the top plate provide information about the ON-OFF status of the turnstile. When the authorization signal arrives, it indicates that passage is free in the form of a green arrow, and in waiting periods when the authorization signal does not arrive, it always indicates that passage is not free in the form of a red x. CASE: ASI 304 quality stainless steel main columns, intermediate poles and top cover, as well as side covers are manufactured as standard from 5 mm black Plexiglas material, and can be changed upon customer request.

OPTIONAL HARDWARE AND FEATURES

POWER CUT: An optional external power supply circuit can be connected, so that when there is a power outage, the turnstile wings automatically open.
REMOTE CONTROL: An external remote control can be easily controlled, and the receiver unit can be easily connected to the main board inside the turnstile.
POLYCARBONATE WING: At least 5 times more resistant to breakage thanks to the bulletproof 10 mm transparent polycarbonate wing.
TEMPERED GLASS WING: 10 mm tempered glass wings can be produced upon customer request.
3 COLOR STRIP LED LIGHT: With 3 colored strip LEDs, red, green, blue, placed inside the body, the transparent turnstile wing is softly illuminated with phosphorescent or fixed light depending on the user's request. This option adds a stylish look to the transparent wing of the turnstile and makes it more visible and easily noticeable.
LASER LOGO EMBROIDERED WING: Laser engraving logo or text can be engraved on the surface of the Plexiglas wing upon user request, thus the transparent Plexiglas wing becomes easily noticeable, in addition to the logo or text engraving, when 3-color strip LED is applied, the engravings and the wing gain a much more distinct and stylish appearance.
TOP PLATE: It can be produced with multiple color and pattern options as special ellipse cut Granite & marble.
PROTECTIVE CASE: A protective case can also be specially produced on the top plate, which is produced to prevent scratches and possible liquid contact in outdoor and indoor environments.
READER GLASS: Ellipse or laser cut Plexiglas reader glass in different shapes and sizes can be placed on the top plate, and this glass can be produced as zero or optionally protruding on the surface.
CONTROL: Passage trigger can work directly with PC control with 12 VDC, 24 VDC, RS 232 -RS 442-485, 256 turnstiles can be controlled with a single PC. If desired, it can be used with all access control units and other peripherals. There is a data output in the passed direction, this output can be a digital output or it can be sent directly to the PC when controlled with a PC.

COLORING: With a wide range of colors, all our models can be colored with electrostatic oven paint upon customer request.

EXTRAS: Oskar turnstile can produce customized solutions for all turnstile types.
